Pharmaceutical Water Treatment Equipment: Pure Water and Ultrapure Water System Experts
We provide comprehensive pharmaceutical water system solutions that meets stringent global GMP, FDA, and USP standards. From design and installation to validation, we are committed to providing you with the safest, most efficient, and most reliable pharmaceutical water solutions.
Ensure excellent water quality to meet stringent pharmaceutical standards
In the pharmaceutical industry, water quality is central to product quality and patient safety. Our Pharmaceutical Water System is designed to provide exceptional ultrapure water, water for injection, and pure steam, meeting and exceeding the highest standards of global pharmacopoeias (such as USP, EP, and JP) and regulatory agencies (such as FDA and cGMP). We understand the importance of every drop of water, and therefore, our systems are designed from the ground up to incorporate advanced technologies and rigorous quality control to ensure a stable and reliable source of qualified water for your production processes.
Pharmaceutical Water System core components and solutions
We provide comprehensive Pharmaceutical Water System solutions, covering all key links from water source to final point of use, ensuring the continuity and stability of water quality.

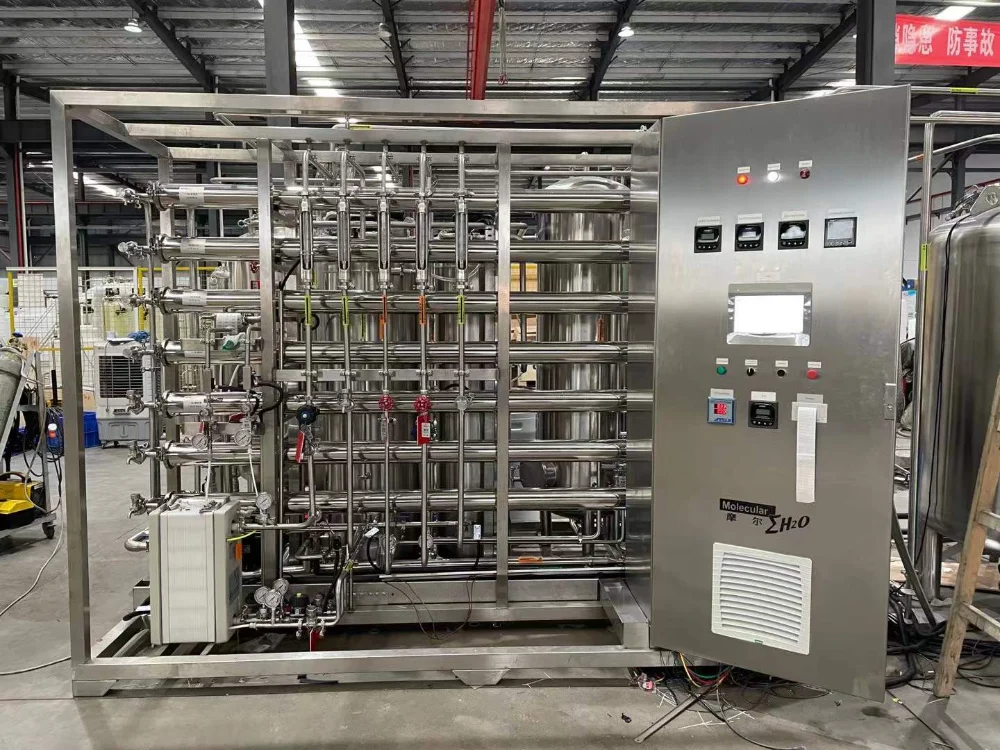

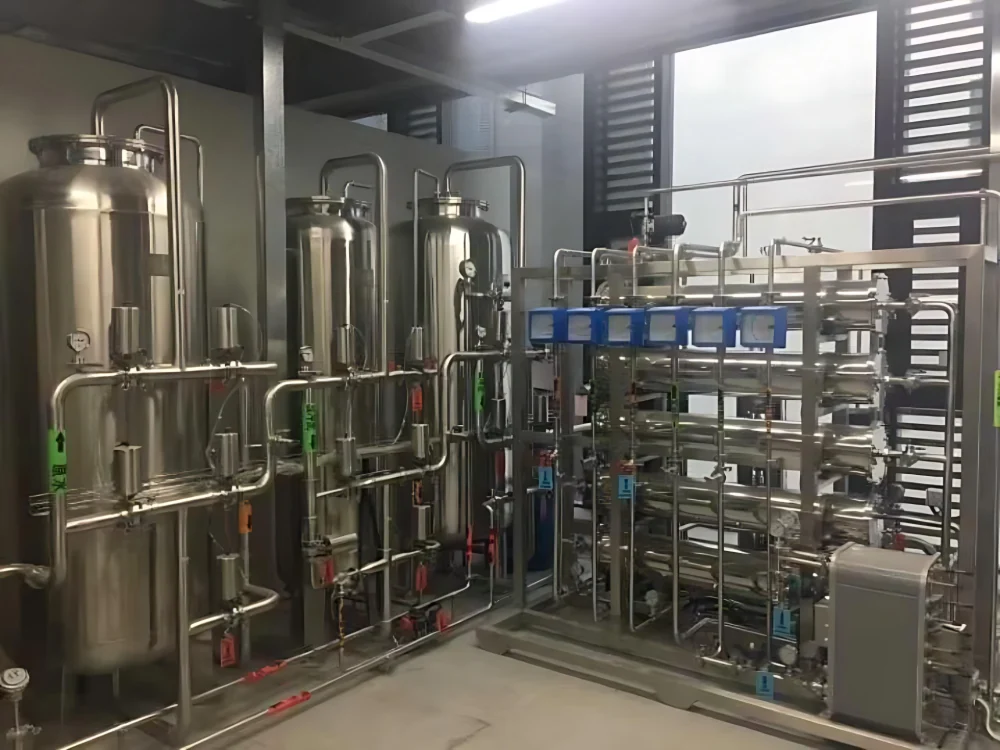

Purified Water Generator
Our pharmaceutical pure water equipment, also known as the purified water system, is the foundation of pharmaceutical water production and utilizes advanced technologies to ensure pure water quality. Using advanced pretreatment, RO, and EDI technologies, we efficiently remove ions, organic matter, microorganisms, and particulate matter from raw water, producing purified water that meets the standards of pharmacopoeias such as USP, EP, and JP. The system design prioritizes energy conservation and consumption reduction to ensure economical operation.
PW Storage & Distribution Loop
To ensure the stability and sterility of purified water during storage and delivery, we offer professional purified water storage tank and distribution circuit design. Made of 316L stainless steel, with a mirror-finish interior, these tanks are equipped with a respirator, circulation pump, UV sterilizer, and online monitoring instrumentation to ensure continuous circulation and quality maintenance of purified water throughout the distribution system.

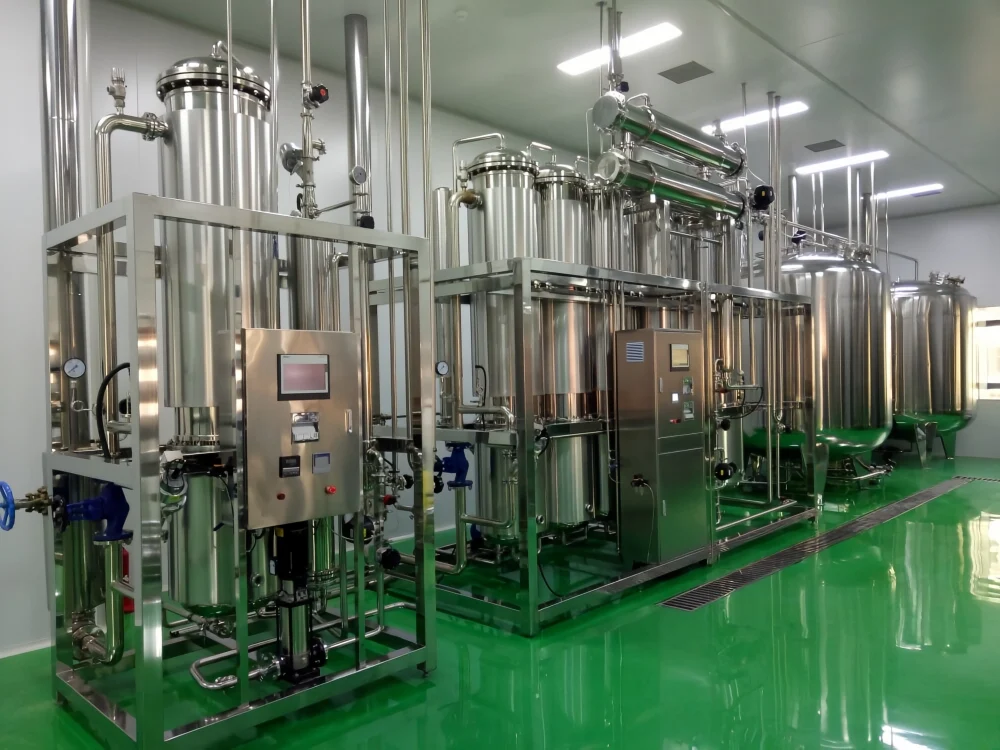

Multi-effect Distiller
For the production of water for injection (WFI), we offer advanced WFI preparation systems that comply with the latest pharmacopoeias, including multi-effect water distiller. Through multi-stage evaporation and condensation, we effectively remove all impurities, including bacterial endotoxins, from water, producing ultrapure water that meets WFI standards. Our water distiller features a compact design, low energy consumption, and easy operation, making it ideal for producing high-quality water for injection.

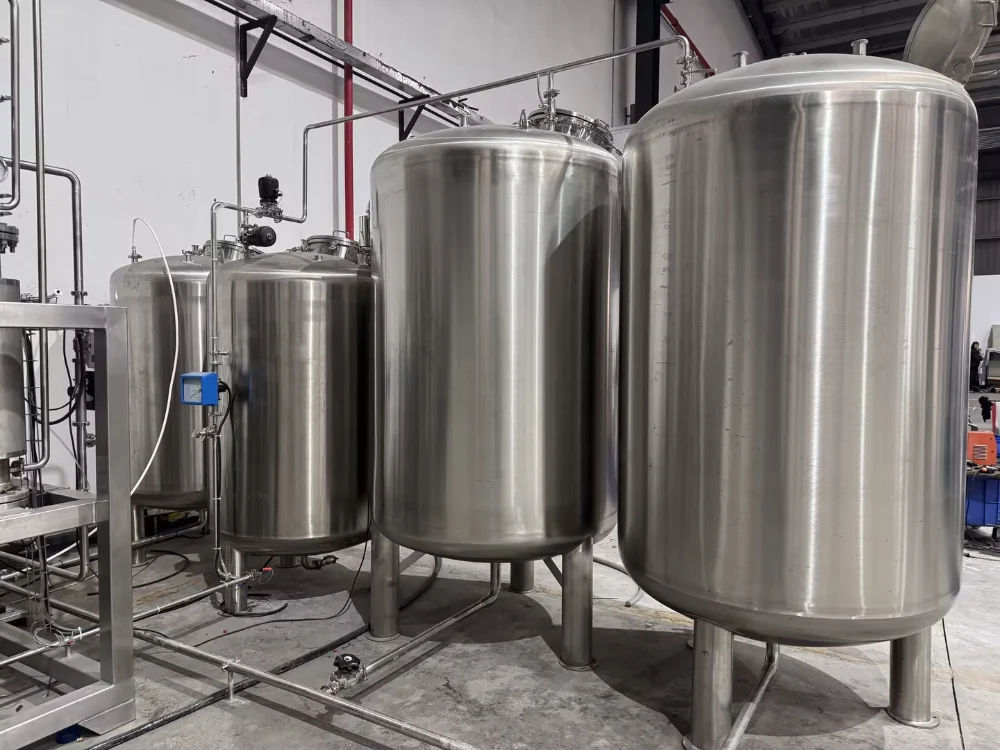

WFI Storage&Distribution Loop
The storage and distribution of water for injection (WFI) requires extremely high sterility standards. Our WFI storage and distribution circuits feature a fully enclosed, zero-dead-angle design and can be equipped with continuous high-temperature sterilization. All water-contacting surfaces are constructed of 316L stainless steel and passivated. The system features online conductivity, TOC, and temperature monitoring to ensure the WFI maintains its high purity and sterility throughout its delivery to each point of use.

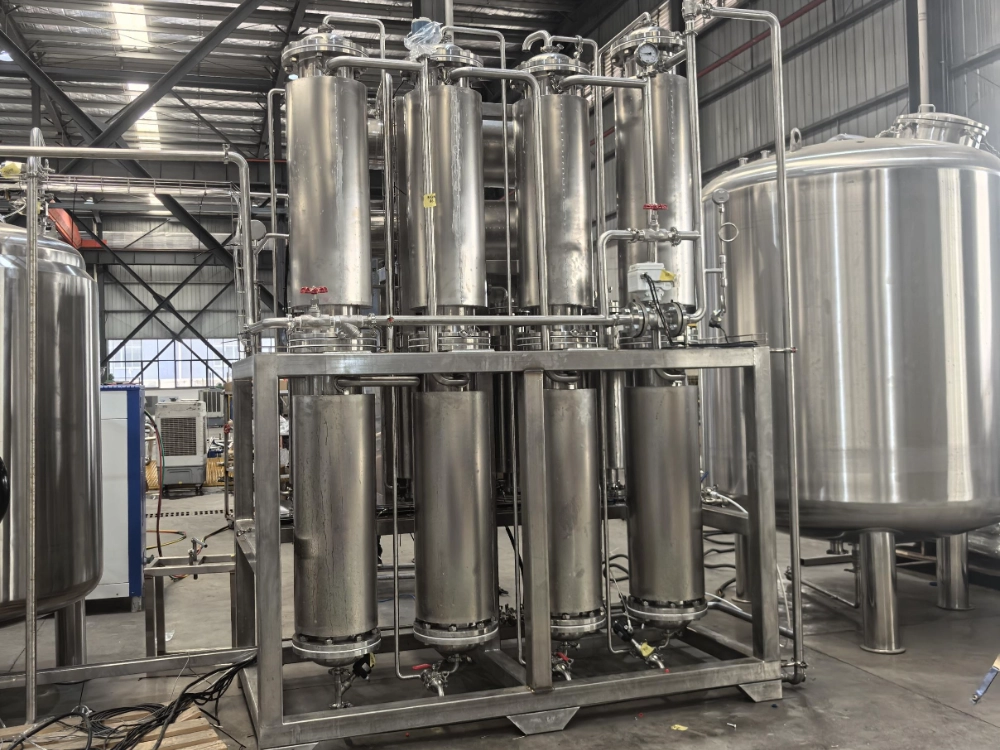

Pure Steam Generator
Pure steam is crucial in sterilization and disinfection processes within the pharmaceutical industry. Our pure steam generators utilize a multi-effect distillation principle or autoclave design, using purified water as feedwater. They produce saturated pure steam that is free of condensate, non-condensable gases, and superheat, meeting standards such as EN285, HTM2010, and USP. This pure steam is widely used in critical processes such as sterilization-in-place (SIP) of autoclaves, reactors, pipelines, and equipment.
Molecular's Comprehensive Water Solutions
We provide integrated pharmaceutical water system solutions, covering every link from raw water pretreatment to final pure water/water for injection preparation, storage and distribution, ensuring the delivery of a stable, efficient and compliant pure water supply.

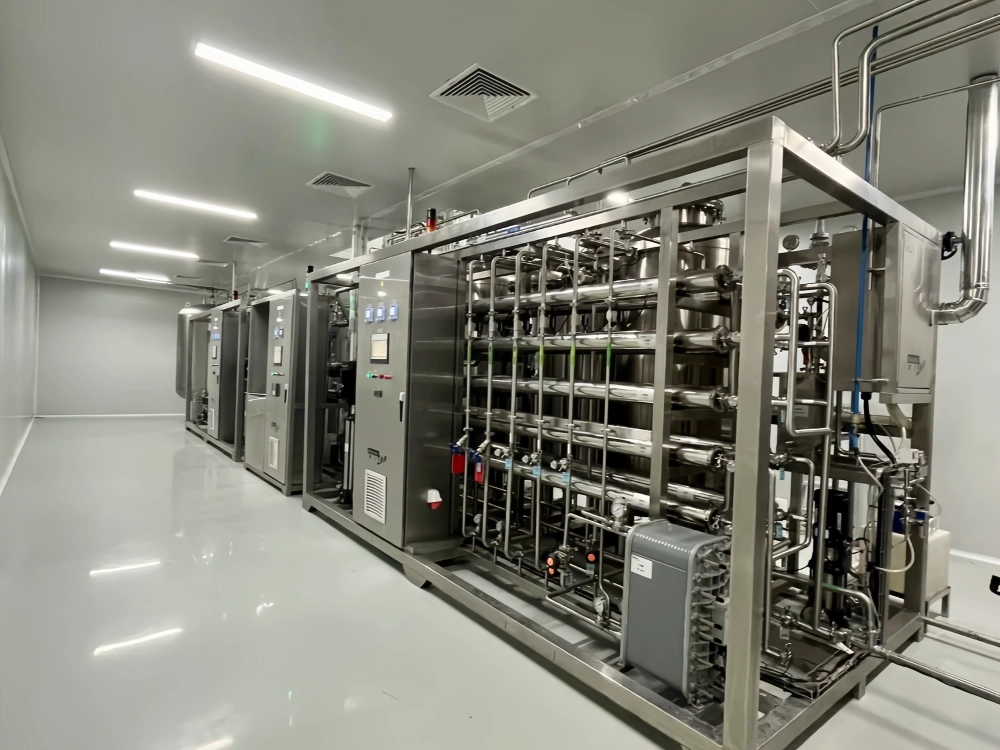

Purified Water Systems
Our Purified Water Systems (PW Systems) are specifically designed to meet the high-purity, low-microbial-burden water requirements of pharmaceutical production. These systems typically utilize a combination of the following advanced technologies:

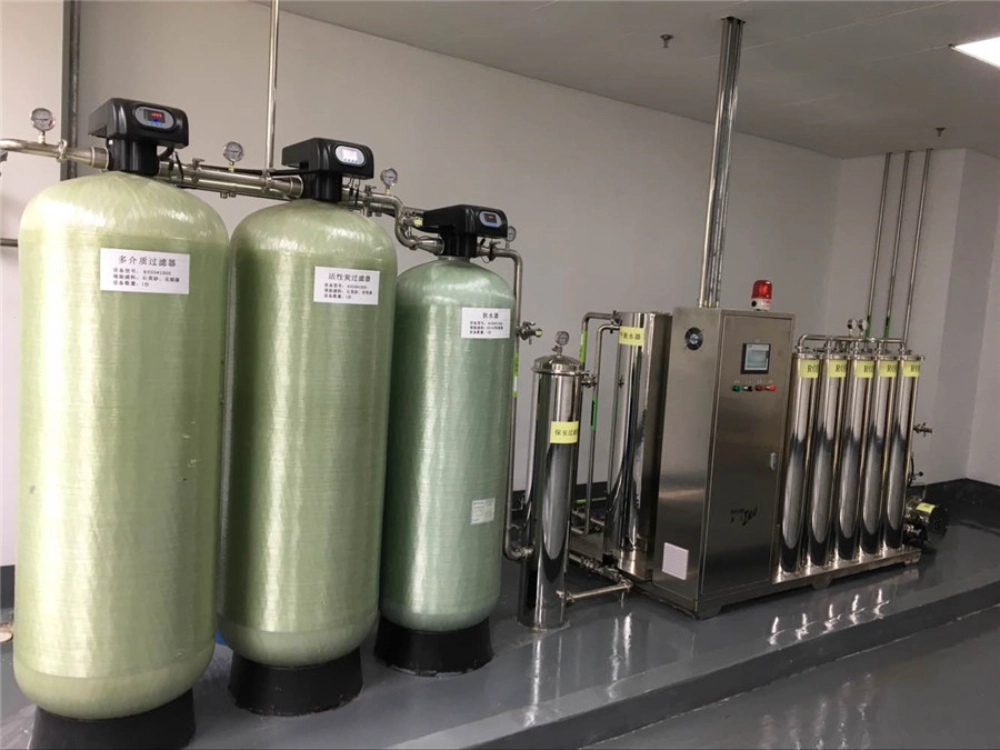

Efficient pretreatment: including multi-media filtration, activated carbon adsorption and softening, effectively removing suspended matter, chlorine and hardness in raw water, providing guarantee for subsequent deep purification.
Double-stage reverse osmosis (RO): Through two-stage RO membrane filtration, it effectively removes more than 99% of ions, organic matter and microorganisms, significantly reducing water conductivity and TOC content.
Continuous electrodeionization (EDI): As an ideal downstream technology for RO, EDI continuously removes residual ions in water through the action of an electric field. It does not require chemical regeneration, is easy to operate, and has low operating costs.
Disinfection and Storage: Equipped with ultraviolet (UV) sterilizer and ozone (O3) generator to effectively disinfect pure water; stainless steel pure water storage tank and circulation distribution loop design to minimize the risk of microbial growth.
Our PW system design focuses on modularity and automation, making it easy to install, operate and maintain, ensuring stable and reliable water quality to meet daily production needs.

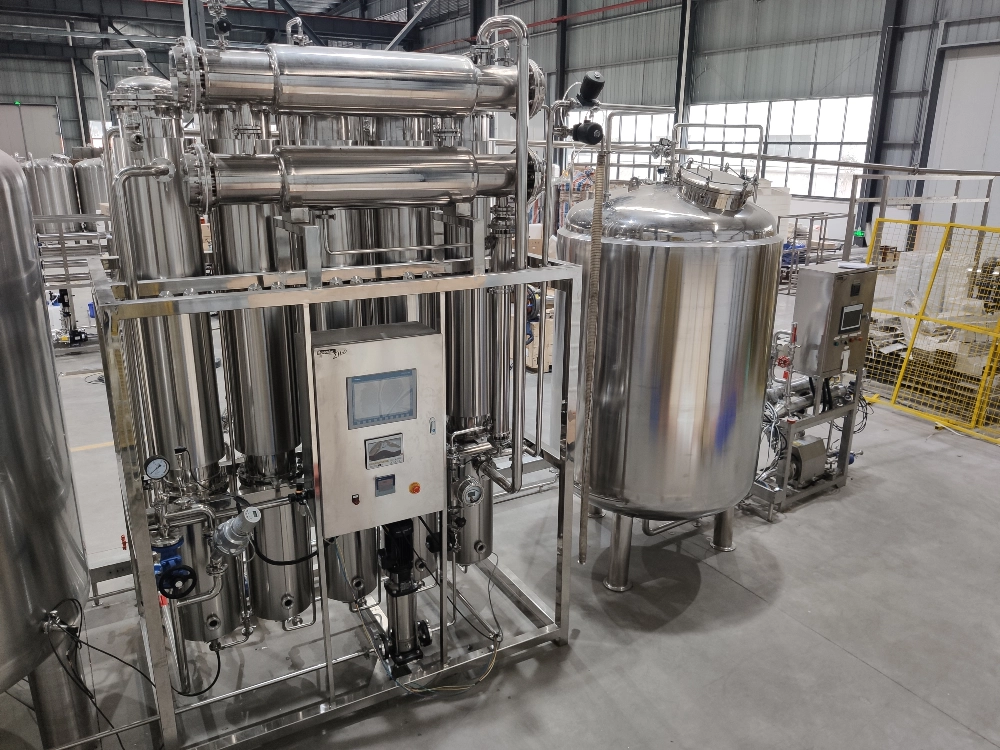

Water for Injection System
We offer industry-leading Water for Injection (WFI) Systems that adhere to the highest pharmacopoeial requirements for WFI to be pyrogen-free. These systems are typically based on proven distillation technology:
- Multi-effect distillation (MED): It uses the principle of multi-stage evaporation and condensation, uses the latent heat of steam for heat recovery, has high energy efficiency, and produces stable water quality, making it suitable for large-scale WFI production.
- Vapor Compression Distillation (VCD): Through mechanical vapor recompression technology, the energy of secondary steam is recovered and reused, significantly reducing energy consumption, making it a more energy-saving and environmentally friendly WFI preparation solution.
- Ultrafiltration (UF)/Reverse Osmosis (RO) Pretreatment: For some WFI production, RO/UF pretreatment may be used first to reduce the influent load, extend the life of the distillation equipment, and further reduce operating costs.
- WFI storage and distribution system: Made of 316L stainless steel with polished interior, equipped with online monitoring instrumentation and thermal disinfection/ozone disinfection functions to ensure the purity and sterility of WFI during storage and distribution.
Our WFI Systems are made of durable materials and precision controls to ensure long-term stable operation and can easily pass rigorous validation and audits.
Why choose Molecular's Pharmaceutical Purified Water Euipment?
-
Meet the highest industry standards It complies with GMP, USP, EP, CP and other domestic and international pharmacopoeia standards.
-
Professional technology and rich experience In the field of pharmaceutical water treatment, we have more than 20 years of professional accumulation, strong R&D capabilities and tens of thousands of successful cases.
-
Customized solutions Customized designs can be provided according to customers' specific needs (water quality requirements, production capacity, site, etc.).
-
Full life cycle service One-stop service from consulting, design, manufacturing, installation, commissioning to verification, training and after-sales maintenance.
-
Advanced processes and technologies Advanced technologies used include reverse osmosis (RO), electrodeionization (EDI), multiple effect distillation (MED), membrane distillation (MD), etc.
Comprehensive validation and compliance support
Regulatory Compliance is the cornerstone of all our Pharmaceutical Water Treatment Equipment and services. We understand the critical need for pharmaceutical manufacturers to meet global regulatory standards. Therefore, all our system design, manufacturing, testing, and documentation adhere to the following key pharmacopoeias and guidelines:
- Standardized production（GMP）： Our systems comply with the latest GMP requirements, ensuring that every step from design and installation to operation and maintenance is traceable and controllable, and can consistently produce water that meets quality standards.
- United States Pharmacopeia（USP）： We ensure that the water quality parameters (such as conductivity, TOC, microbial limits, endotoxins, etc.) of the produced water fully meet the latest USP requirements for PW and WFI.
- European Pharmacopoeia（EP）： Likewise, our systems meet the stringent EP regulations for pharmaceutical water, ensuring your products flow smoothly around the world.
- Japanese Pharmacopoeia（JP）： We also have a deep understanding of JP’s specific requirements and can provide corresponding design and verification support.
Our validation documentation and support will greatly simplify your compliance process and give you confidence in regulatory audits.
Comprehensive validation and compliance support
Compliance with regulatory requirements is the lifeline of pharmaceutical companies. Our Pharmaceutical Water System strictly follows cGMP guidelines in every aspect of design, manufacturing, and testing. We provide comprehensive validation support services, including:
DQ
IQ
OQ
PQ
Our dedicated technical team will assist you with all necessary documentation and testing to ensure your water system successfully passes audits and remains compliant with regulations, allowing you to focus on core production without worrying about compliance.
